CSAW 2023 Finals Writeup: Cell

This is a writeup for Cell, a reverse engineering challenge from the CSAW 2023 finals. We are given a file named cell.pkg, around half a megabyte in size. Running file on it doesn't reveal much. strings isn't that helpful either. I tried searching up the first four bytes (\x7fPKG), which looked like some sort of magic bytes. The first couple of results on Google are all related to the PS3, so it's reasonable to assume that this is a PS3 game. The PS3 runs a Cell processor, which has a 64-bit PPC core and several coprocessors.

I downloaded RPCS3, a PS3 emulator and debugger. I was able to load the file into the emulator and run it. When I ran it, a screen popped up with controller button icons arranged in the center and a timer in the top left. The text Hmm... I'm trying to poll these inputs right.... suggests that this is supposed to be a controller input test. As the timer counts up, starting from -48 and counting in increments of 16, it the program abruptly stops at a count of 0.

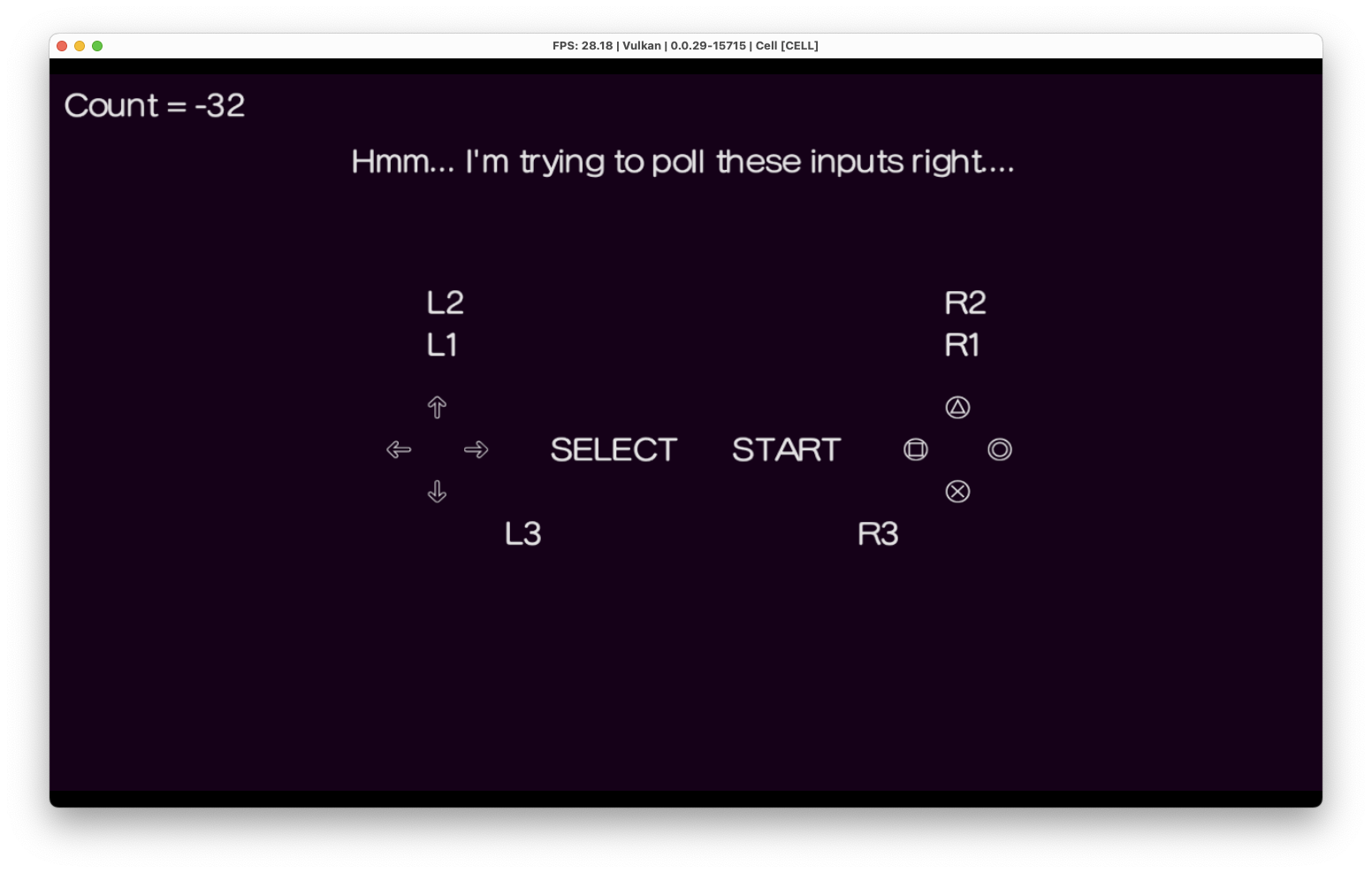

Figure 1: game interface

The challenge asked for the state of the registers after fixing the program, so I decided to extract the binary and look for what possibly could be wrong with it. On my computer, the RPCS3 loaded the game into the folder ~/Library/Application Support/rpcs3/dev_hdd0/game/CELL_00-0/USRDIR. From there, I took the EBOOT.BIN file and extracted the ELF using RPCS3's "Decrypt PS3 Binaries" feature (under Utilities).

From there, I can load the binary into Ghidra and analyze it statically. But before that, I ran it with the debugger first. To do that, I had to tell RPCS3 to use an interpreter (right click the game and select Change Custom Configuration, select Interpreter (static) under the CPU tab). I used the handy call stack window in the debugger to figure out where the main function was (00010bf0). From there, I figured out the main loop that ran every 2 seconds which updated the timer count, among other things.

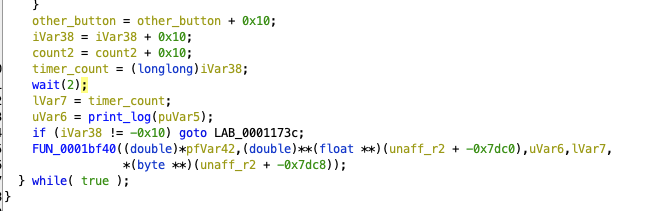

Figure 2: timer increments and delays at end of main loop

I also noticed that r2 stores a base pointer that doesn't change in the main function. This pointer 0x1054b0 is the base of a string table. I noticed a string Nice job, you did it ... check my regs :) in the binary. Tracing this reveals an offset of -0x7c20 from r2, which is loaded once in the main function. This indicated where in the program I needed to reach. There was a counter variable that matched the timer in the upper left hand corner of the screen. The "Nice job" message only printed once the timer got to 128, so I just let the program run until then.

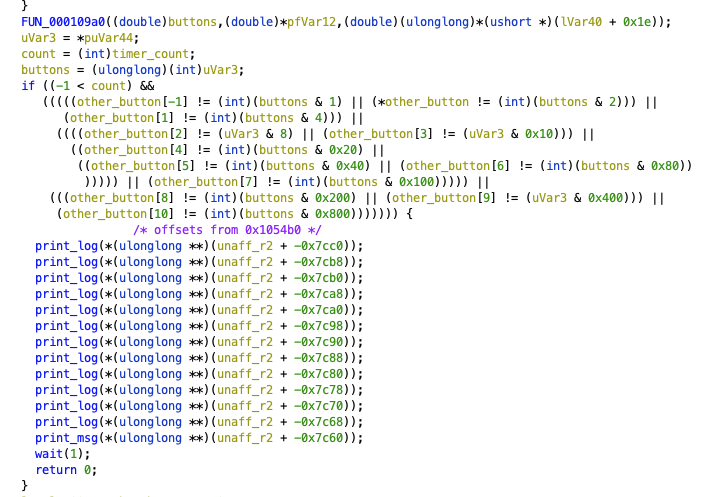

Figure 3: condition that causes program to exit early

However, the program would exit when the timer count became nonnegative and the buttons pressed did not match some predetermined patterns. I simply patched out this if statement and exit condition. I used RPCS3's built-in patch functionality. I figured out the patch format using their online documentation and trial and error. To properly format the patch, I had to find the PPU hash, which I got from the log as the program booted up.

Here is the patch:

Version: 1.2

PPU-1c892d3d92a43cd0652fee9b9a4ecf319826943c:
  "mypatch":
    Games:
      "Cell":
        CELL: [ 01.00 ]
    Author: "a"
    Notes: "a"
    Patch Version: 2.0
    Patch:
      - [ be16, 0x0001224c, 0x4800 ] # to 0x000125f0 from 0x0001224c, skips fail portion

The be16 tells RPCS3 that this is a 16-bit big-endian patch. The 0x0001224c is the address and the 0x4800 is the value to patch with. All that this patch accomplishes is to convert a conditional branch into an unconditional branches, which skips the entire if statement.

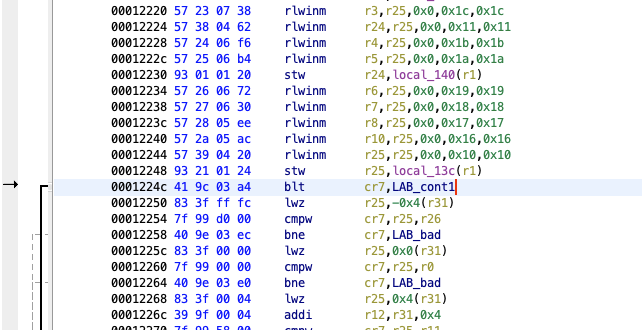

Figure 4: overwriting with unconditional branch

Finally, I reached the "end" of the program where it put itself into an infinite loop. I fed the register values at this point into the flag oracle. Unfortunately, the r27 register was wrong. From running it multiple times, I noticed that this register stored a bitmask of the buttons that were pressed. This likely was incorrect because I had patched out the if statement checking the buttons instead of actually figuring out what they were. Fortunately, my teammate Kevin (kmh) noticed that the four register values I had gotten right so far all had only one of the 8 bytes set:

r3: 000000000000000a
r5: 000000000000002b
r9: 0100000000000000
r10: 0000000000000001

He wrote a program to brute force all 256 possibilities for each of the 8 bytes, which yielded the correct result for r27, 0000000000000400.

Although I definitely skipped much of the reverse engineering difficulties intended for this challenge (brute forcing the one register that varied), I still enjoyed reverse engineering a rare architecture. The PS3 debugging tooling was much better than I anticipated as well.
